Performance and use：
Full automatic high speed paper bag making machine use primary color rolling paper or printed rolling paper such as kraft paper, striped brown paper, slick paper, food coated paper,medico paper and so on, bag making process consist of puncture, side gluing, sidefolding, bag forming, cut off, bottom folding, bottom gluing, finish product delivered in onetime. Our machine have advantage of easy operation, high effeciency, more steady, it is an idealmachine for make differnt kind of paper bag, snack food paper bag, bread paper bag, dry fruitpaper bag and environment friendly paper bag.
Main feature：
1 The man-machine interface of Weilun touch screen is adopted, the operation function is clear at a glance, easy to control
2 Adopt the Japanese original Mitsubishi motion controller, through the integration with the optical fiber, operation stability
3 Japanese Mitsubishi servo motor with German Schick color standard eye correction, accurate tracking printing bag size
4 The loading and unloading of raw material adopts hydraulic dynamic lifting structure, and the unwinding adopts automatic constant tension control
5 Brushless servo motor is used to correct the deviation of raw material and reduce the adjustment time of paper roll alignment
Technical parameters：

Model	XY-260
Cutting Length	110-460mm
Bag length （L）	100-450mm
Bag width（W）	70-250mm
Insert size（G）	20-120mm
Ladder height	15/20mm
Paper bag speed	30-300pcs/min
Paper width	160-780mm
Maximum diameter of paper material	1000mm
Inner diameter of paper	76mm
Paper thickness	35-80g/㎡
Working gas	≧0.12m³/min，0.5-0.8mpa
Power	380v 3phase 4line 24kw
Total weight	4500kg
Dimension (L*W*H)	7100*3000*2200mm

Flow chat：

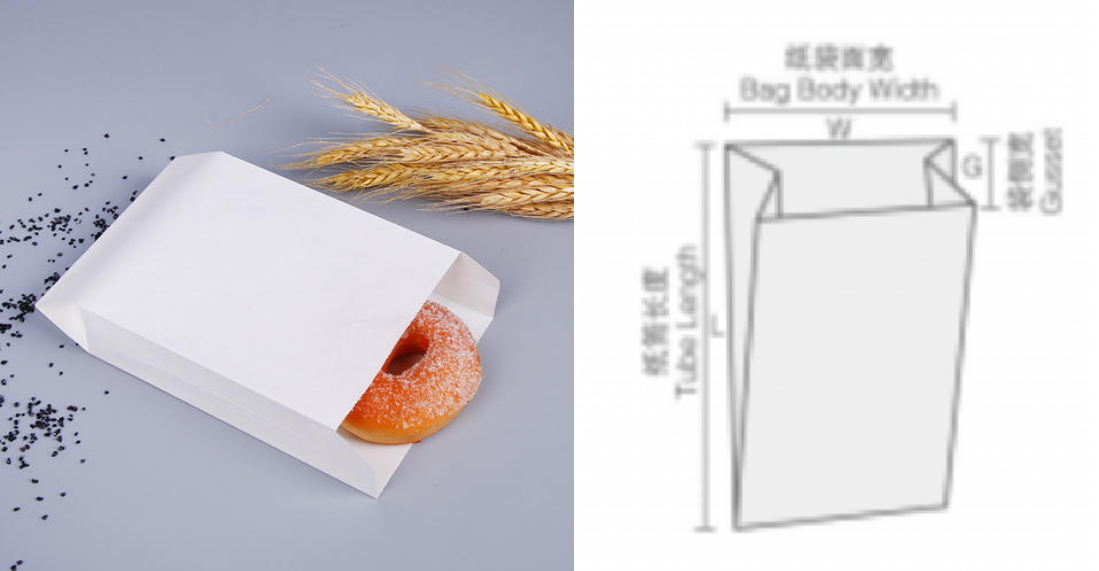

Sample bag:
